Rolling Machine

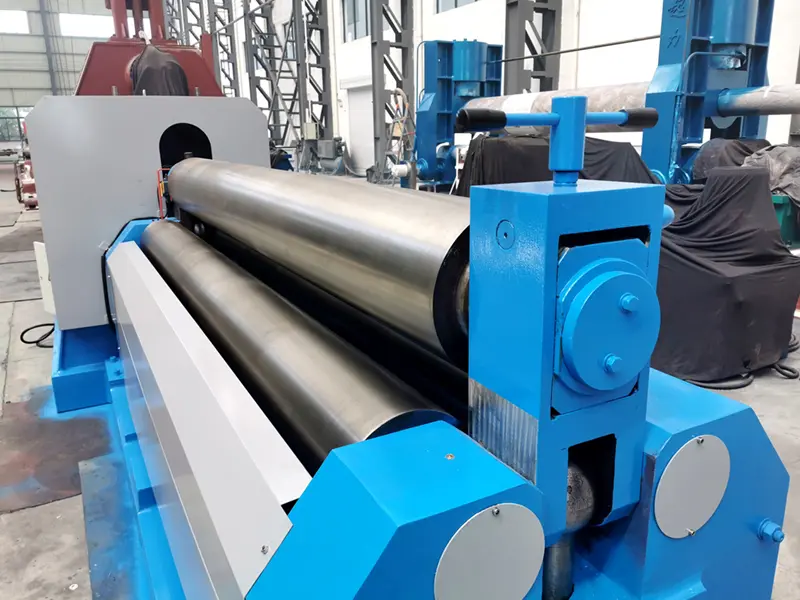

W11 Series Mechanical 3-Rollers Rolling Machine
The W11 Series plate roller machine is mighty and uses a pyramidal linear guide for bending rollers, which enables it to achieve the best bending results without guaranteed power loss. In the plate roller machine model W11, all three rollers use independent hydraulic gear motors directly coupled to the rolling roller shaft, which can ensure the superiority of torque and speed of these plate roller machines.
Standard Equipment
REQUEST INFORMATIONStandard Equipment
Two motorised rolls
Induction hardened rolls
Polished roll surface
Motorised pre-bending and bending
Bending roll tilt
Rolls with extensions for bending profiles
Mobile pedal controls
Emergency barrier around the machine
CE certified machine
Optional Features
Digital readouts for roll position
Conical device
Profile bending rings
Numerical controls
Version with vertical rolls
Version with corrugated rolls
Technical Parameter
| Name | Max Rolling Thickness |
Max Rolling Width (mm) |
Min Rolling Diameter (N/mm) |
Yield Limit (N/mm2) |
Rolling Speed (m/min) |
Upper Roller Diameter (mm) |
Lower Roller Diameter (mm) |
Lower Roller Center Distance (mm) |
Main Motor Power (Kw) |
Weight (Kg) |
|
| W11-4/1500 | 4 | 2.5 | 1500 | 187.5 | 245 | 5 | 150 | 140 | 200 | 4 | 1700 |
| W11-4/2000 | 4 | 2.5 | 2000 | 200 | 245 | 5 | 160 | 150 | 220 | 4 | 2000 |
| W11-6/1500 | 6 | 4 | 1500 | 200 | 245 | 5 | 160 | 150 | 220 | 4 | 2200 |
| W11-6/2000 | 6 | 4 | 2000 | 212.5 | 245 | 5 | 170 | 160 | 220 | 5.5 | 2500 |
| W11-6/2500 | 6 | 4 | 2500 | 225 | 245 | 4.5 | 180 | 170 | 250 | 5.5 | 2600 |
| W11-8/1500 | 8 | 5 | 1500 | 212.5 | 245 | 5 | 170 | 160 | 220 | 5.5 | 2400 |
| W11-8/2000 | 8 | 5 | 2000 | 225 | 245 | 4.5 | 180 | 170 | 250 | 5.5 | 2500 |
| W11-8/2500 | 8 | 5 | 2500 | 300 | 245 | 4.5 | 240 | 180 | 280 | 7.5 | 4000 |
| W11-12/2000 | 12 | 8 | 2000 | 300 | 245 | 4.5 | 240 | 180 | 280 | 7.5 | 3500 |
| W11-12/2500 | 12 | 8 | 2500 | 325 | 245 | 4.5 | 260 | 220 | 320 | 11 | 5300 |
| W11-12/3000 | 12 | 8 | 3000 | 350 | 245 | 4 | 280 | 240 | 360 | 11 | 7500 |
| W11-16/2000 | 16 | 10.5 | 2000 | 325 | 245 | 4.5 | 260 | 220 | 320 | 11 | 4800 |
| W11-16/2500 | 16 | 10.5 | 2500 | 350 | 245 | 4 | 280 | 240 | 360 | 11 | 6700 |
| W11-16/3000 | 16 | 10.5 | 3000 | 425 | 245 | 4 | 340 | 270 | 440 | 15 | 10300 |
| W11-20/2000 | 20 | 13 | 2000 | 350 | 245 | 4 | 280 | 240 | 360 | 11 | 6500 |
| W11-20/2500 | 20 | 13 | 2500 | 425 | 245 | 4 | 340 | 270 | 440 | 15 | 9300 |
| W11-25/2000 | 25 | 16.5 | 2000 | 425 | 245 | 4 | 340 | 270 | 440 | 15 | 8600 |
| W11-25/2500 | 25 | 16.5 | 2500 | 462.5 | 245 | 4 | 370 | 280 | 480 | 22 | 11000 |
| W11-30/2000 | 30 | 20 | 2000 | 462.5 | 245 | 4 | 370 | 280 | 480 | 22 | 10000 |
| W11-30/2500 | 30 | 20 | 2500 | 525 | 245 | 4 | 420 | 360 | 550 | 30 | 16000 |
| W11-30/3000 | 30 | 20 | 3000 | 187.5 | 245 | 4 | 150 | 390 | 600 | 30 | 18500 |
| W11-40/2500 | 40 | 26.5 | 2500 | 625 | 245 | 4 | 500 | 400 | 600 | 37 | 20000 |
