W11F Asymmetric 3-Rollers Plate Bending Machine

W11F series plate bending machine adopts a strong electric welding structure, equipped with a super large steel roller. The side roller moves on a linear guide, bending the material near the tight point, thus ensuring that the device’s performance is comparable to that of the more expensive four-roller plate bending machine. In addition, the bending roll motion of the series three-roller plate bending machine ensures optimal traction. For asymmetric geometry and thin sheet, it can effectively prevent it from sliding during the pre-bending process.

Standard Equipment

REQUEST INFORMATION

Standard Equipment

Two motorised rolls

Induction hardened rolls

Polished roll surface

Motorised pre-bending and bending

Bending roll tilt

Rolls with extensions for bending profiles

Mobile pedal controls

Emergency barrier around the machine

CE certified machine

Optional Features

Digital readouts for roll position

Conical device

Profile bending rings

Numerical controls

Version with vertical rolls

Version with corrugated rolls

Technical Parameter

Model Max. Thickness of Plate (mm) Pre-bending Thickness (mm) Max. Width of Plate (mm) Plate Yeild Limit (Mpa) Top Roller Dia. (mm) Bottom Roller Dia. (mm) Side Roller Dia. (mm) Main Motor (Kw) Weight (T)
W11F-2x1000  2 2 1000 245 110 110 110 2.2 1000
W11F-2x1500  2 2 1500 245 120 120 120 2.2 1200
W11F-2x2000  2 2 2000 245 130 130 130 2.2 1450
W11F-3x1000  3 3 1000 245 120 120 120 2.2 1050
W11F-3x1500  3 3 1500 245 130 130 130 2.2 1150
W11F-4x1000  4 4 1000 245 130 130 130 2.2 1300
W11F-4x1500  4 4 1500 245 135 135 135 3 1600
W11F-4x2000  4 4 2000 245 150 150 150 4 2000
W11F-6x1000  6 6 1000 245 140 140 140 3 1500
W11F-6x1500  6 6 1500 245 150 150 150 4 2200
W11F-6x2000  6 6 2000 245 170 170 170 5.5 2600

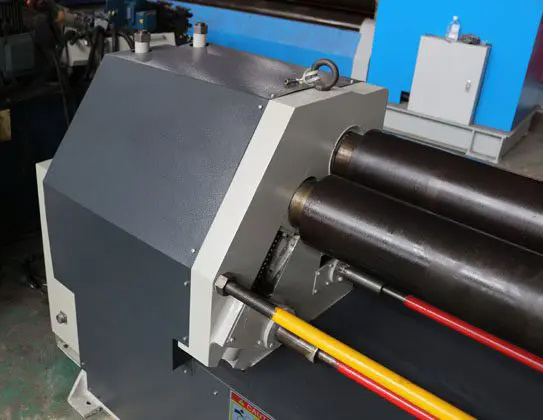

W11F Asymmetric 3-Rollers Plate Bending Machine
W11F Asymmetric 3-Rollers Plate Bending Machine
W11F Asymmetric 3-Rollers Plate Bending Machine
