Exchange Worktable

Laser Cutting Machine

Exchange Worktable

The 4th generation TMA fiber laser metal cutting machine is mainly designed for high power from 2kw to 20kw. A full-protection cover can protect the worker from the harm of laser radiation and reduce environmental pollution. Laser cutting machines equipped with auto-exchangeable platforms can save loading time and improve processing efficiency. It only takes the exchange platform 20 seconds to complete the exchange.

Introduction to Configuration

Heavy-load Thermal Isolated Hollow Bed


The heavy-duty heat-insulating hollow bed of the metal laser cutting machine is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and precision machining, super-large gantry milling machines ensure that the bed has sufficient structural stability and shock resistance. The mattress will not deform after long-term use, which improves the service life of the equipment.

Exchange Worktable

Intelligent Spiral Vacuum Dust Removal


Intelligent spiral vacuum dust removal is a time-sharing system with an automatic air outlet switch and sectional air exhaust. It can cooperate with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.8kw or higher power machine has graphite and copper protection.

Exchange Worktable

The Fifth-generation Aviation Aluminum Alloy Beam


The T6 heat treatment process processes the full beam of the laser metal cutting machine to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

图片名称

Intelligent Control System


“CypCut plane cutting” software is a set of software specially developed for the deep customization of the laser cutter machine industry. Easy to use, rich in functions, and suitable for various processing occasions.

图片名称

Auto focusing laser head


The laser cutter machine’s auto-focusing optical fiber cutting head has a built-in motor drive unit. A linear mechanism automatically drives the focus lens to change the position within the specified range. The program can set the continuous focus to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.

Exchange Worktable

Lightning swap for laser metal cutting machine


The laser cutting machine is equipped with a six-sided steel track, the pulley and the track are inlaid tightly, powerful pneumatic tightening, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange in 10s.

Exchange Worktable

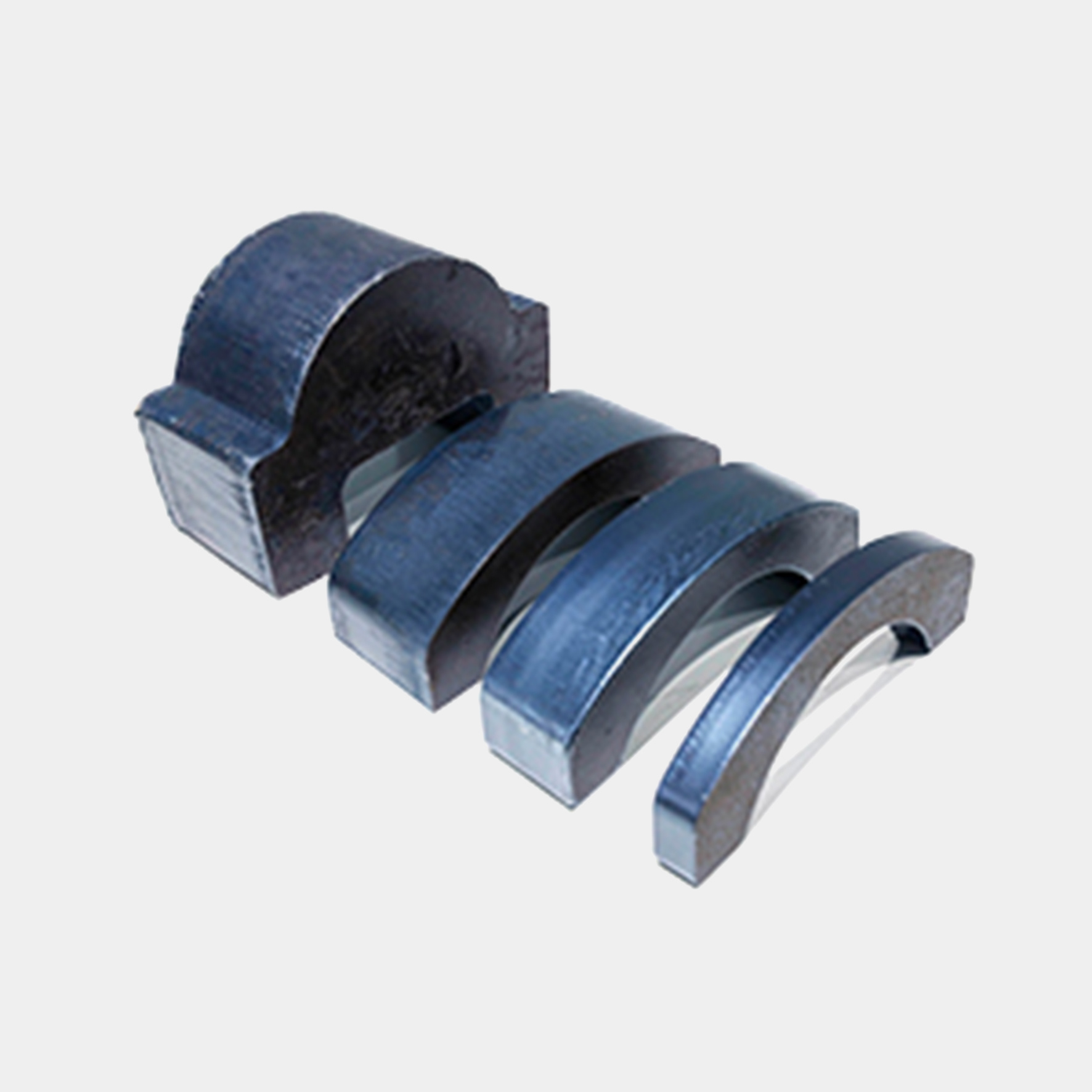

Application Materials of laser cutting machine


TML-6000 sheet metal laser cutting machine can cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, Etc. The device is widely used in metal tube processing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, and decorative advertisements.

Exchange Worktable

Automatic Loading Equipment(Optional)


◐ Tubes are usually loaded to material laying area by transmission mechanism of which limiting device can make tubes in order.

◐ Tubes are clamped by 6 loading rollers that need no reset in a loading cycle, resulting in less waiting time and high cutting efficiency.

Exchange Worktable

Standard Equipment

REQUEST INFORMATION

IPG Fiber Laser Welding - Germany

MAX Fiber Laser Welding - China

Raycus Fiber Laser Welding - China

Technical Parameter

TYPE 3015 4015 4020 6015 6020 6025 8025
Processing Gange 3000mm*1500mm 4000mm*1500mm 4000mm*2000mm 6000mm*1500mm 6000mm*2000mm 6000mm*2500mm 8000mm*2500mm
Laser Power 1500W / 3000W / 6000W / 12000W / 24000W / 30000W
X-Axis Travel 1525 1525 2025 1525 2025 2525 2525
Y-Axis Travel 3025 4025 4025 6025 6025 6025 8025
Z-Axis Travel 100 100 100 100 100 100 100
Positioning Accuracy ±0.05mm/m
Repeated Positioning Accuracy ±0.03mm/m
Maximum Linkage Speed 100m/min
Maximum Acceleration 1.5G
