CNC Hydarulic Press Brake (4+1 Axis)

Item No.: WC67K-100T/3200
WC67K Series 4+1 Axis
CE, ISO SGS Certification
Delivery Time: 15-20 Days
After-Sales Service: 2 Years
Free Shipping Insurance
Request Quote
Description

. Main Features:

  • Brand-new industry design combined with modern aesthetic concept, high-quality production technology with simple appearance.
  • Latest high-frequency responding hydraulic control technology, faster, more efficient and higher accuracy.
  • Heat treatment of the machine frame, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of TMA series Press Brakes.
  • Optimal ratio of parameters and top-level core configuration ensure stable performance, and easy operation.
  • MB8 standard 2axis backgauge system, as for complicated shape work piece, 4 or 5 axis backgauge system and corresponding dies are available for your option.
  • Press Brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2 ) running on the same frequency, maintaining the parallel state of the worktable.
  • According to process state of sheet metal, CNC system can automatically control the table deflection compensation value resulting in uniform length and angle of all workpieces.
  • The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders in the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relations with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.

2. Main Configurations:

  • CNC system adopts Holland DELEM DA52S
  • Grating ruler controls depth of Y1 and Y2 axis(y1/y2-axis 0.01mm)

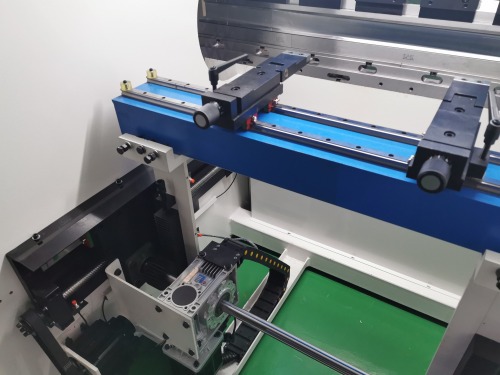

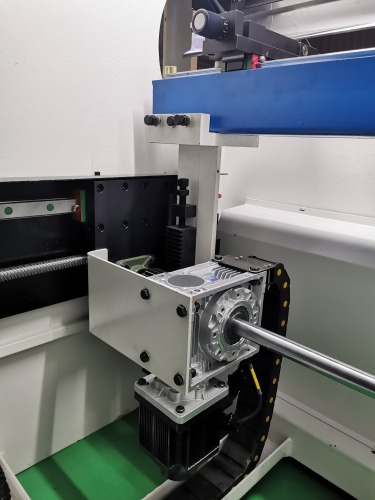

  • Servo motor servo drives control X axis(X, R-axis 0.01mm), stop finger can be easily moved along the cylindrical guide.
  • Keep the accuracy between HIWIN ball screw and linear guide rail within 0.01mm
  • Front supporter can be adjusted along the linear guide rail in the worktable direction
  • Germany Rexroth fully closed-loop electro-hydraulic servo synchronously controls the system
  • Germany EMB oil tube connectors
  • Germany Siemens main motor
  • France Schneider Electrics
  • Hydraulic and electrical overload protection
  • Upper are mechanical fast pinching dies. Lower are double-V easy changeable dies
