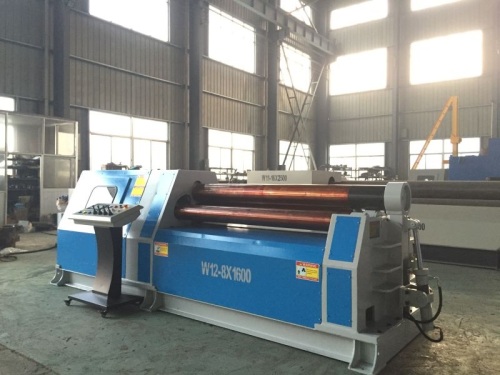

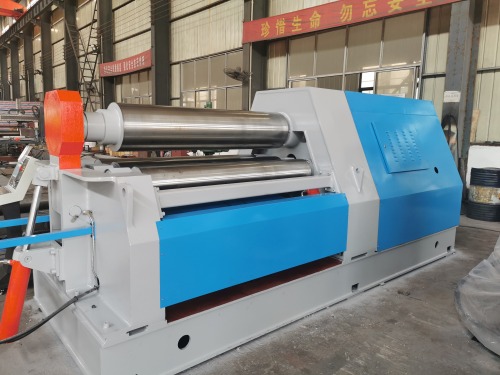

Name: 4 Roller Hydarulic Plate Rolling Machine
Brand: TMA--Sheet Metalwork Machinery
SKU: W12-8X2000
Availability: InStock
Rating: 5 (3 reviews)

Categories

Hydraulic Press Brake

Hydarulic Shearing Machine

Fiber Laser Cutting Machine

Rolling Machine

Iron Worker

Hydraulic Press

Turruet Punching Machine

Plasma Cutting Machine

Rolling Machine

Home> Products >Rolling Machine

Description

Performance features:

●It’s easy to operate,rich shape bend;
●CNC control,digital readout for position of each rollers.High accuracy and precision circle;
●Full hydraulic drive,High efficiency and energy saving,the drive power is equivalent to the traditional 60%;
●Once forming ,the productivity is higher 50%-80% than three roller bending machine;
●Aligning the material is convenient and accurate,avoid the wrong side phenomenon;
●Cone bending device;
●Permanent lubrication(bearing life without refueling);
●The top and bottom roller clamp the plate during rolling without slipping;
●The min. bending diameter of the cylinder can get to 1.1 times the diameter of the top roller,the surplus flat edge smaller than any type of other plate rolling machine;
●The carring device and feeding device and support device can be installed easily;
●CE certificate.

Model	Max.Bending Thickness(mm)	Pre-Bending Thickness(mm)	Max.Working Length of Rolls (mm)	Yield Limit (Mpa)	Top Roller Diameter (mm)	Bottem Roller Diameter(mm)	Side Roller Diameter(mm)	Main Power (kw)
W12-4×2000	4	3.5	2050	245	160	140	120	3
W12-6×2000	6	5	2050	245	190	170	150	4
W12-8×2000	8	6.5	2050	245	210	190	170	5.5
W12-10×2000	10	8	2050	245	230	210	190	7.5
W12-12×2000	12	10	2050	245	270	250	210	11
W12-16×2000	16	13	2050	245	300	270	220	11
W12-20×2000	20	16	2050	245	330	300	240	11
W12-25×2000	25	20	2050	245	360	330	250	15
W12-30×2000	30	25	2050	245	390	360	300	18.5
W12-35×2000	35	28	2050	245	430	390	330	22
W12-40×2000	40	32	2050	245	460	420	360	30
W12-45×2000	45	36	2050	245	510	460	390	37
W12-50×2500	50	40	2050	245	550	510	420	45
W12-4×2500	4	3.5	2550	245	190	170	150	4
W12-6×2500	6	5	2550	245	210	190	170	5.5
W12-8×2500	8	6.5	2550	245	230	210	190	7.5
W12-10×2500	10	8	2550	245	270	250	210	11
W12-12×2500	12	10	2550	245	300	270	220	11
W12-16×2500	16	13	2550	245	330	300	240	11
W12-20×2500	20	16	2550	245	360	330	250	15
W12-25×2500	25	20	2550	245	390	360	300	18.5
W12-30×2500	30	25	2550	245	430	390	330	22
W12-35×2500	35	28	2550	245	460	420	360	30
W12-40×2500	40	32	2550	245	510	460	390	37
W12-45×2500	45	36	2550	245	550	510	420	45
W12-4×3000	4	3.5	3100	245	210	190	170	5.5
W12-6×3000	6	5	3100	245	230	210	190	7.5
W12-8×3000	8	6.5	3100	245	270	250	210	11
W12-10×3000	10	8	3100	245	300	270	220	11
W12-12×3000	12	10	3100	245	330	300	240	11
W12-16×3000	16	13	3100	245	360	330	250	15
W12-20×3000	20	16	3100	245	390	360	300	18.5
W12-25×3000	25	20	3100	245	430	390	330	22
W12-30×3000	30	25	3100	245	460	420	360	30
W12-35×3000	35	28	3100	245	510	460	390	37
W12-40×3000	40	32	3100	245	550	510	420	45
W12-50×3000	50	40	3100	245	610	560	480	55
W12-60×3000	60	48	3100	245	670	620	520	75
